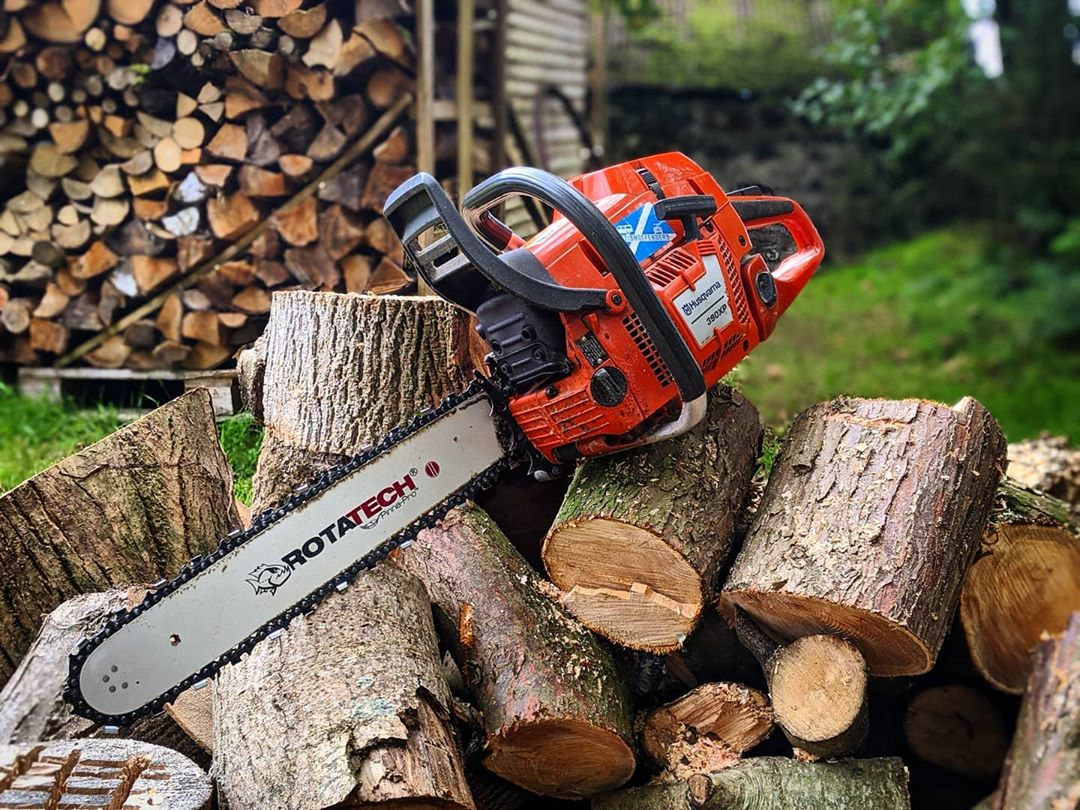

Understanding Your Chainsaw Bar
What Does a Chainsaw Bar Do?
A chainsaw bar (also called a guide bar) is the metal rail that guides and supports the chain as it rotates around the engine. The bar's groove—a precise channel running along its length—holds the chain in place and determines how the chain cuts through wood. Unlike the chain, which is frequently sharpened and replaced, a quality bar can last for years if properly maintained.
The bar absorbs significant lateral stress and heat during cutting, making it a wear component that eventually needs replacement. Understanding how your bar works is the first step toward maintaining it effectively.
Bar Anatomy: Key Components
Every bar has several critical parts:
- The groove: The channel where the chain rides, precisely milled to your bar's specifications
- The nose/tip: The rounded end where the chain changes direction—this area experiences the most wear and friction
- Mounting holes: Connect the bar securely to your chainsaw
- Oil ports: Allow bar oil to lubricate the groove and reduce friction
When to Replace Your Chainsaw Bar
Signs Your Bar Needs Replacement
Knowing when replacement is overdue is crucial for maintaining cutting quality and safety. Here are the key indicators:
Excessive groove wear. If the groove develops a visible taper (wider at one end than the other) or if you can rock the chain side-to-side in the groove, the bar is too worn for reliable operation. This wear causes uneven chain tensioning and pulls the chain off-centre, resulting in crooked cuts.
Bent or twisted bar. If you drop your saw, hit a rock, or cut at incorrect angles, the bar can bend. Even slight bends cause the chain to pull to one side. Place the bar on a flat surface to check for warping. Bent bars must be replaced—they cannot be safely straightened.
Damaged nose tip. The rounded tip wears faster than the rest of the bar. Excessive wear here (a flat or severely worn nose) reduces cutting efficiency and increases kickback risk. Some bars have replaceable sprocket noses that can extend bar life, but solid-nose bars cannot be repaired.
Damaged mounting holes or bolt seats. Stripped mounting holes prevent secure attachment to your saw, creating safety hazards. Duct tape is not a solution—replace the bar.
The chain won't hold tension. If the tensioning mechanism can't keep the chain tight—even after adjustment—the problem is often groove wear. Over time, a worn groove prevents the chain from seating properly, and no amount of tightening helps.
Visible pitting, cracks, or rust. Deep corrosion, cracks, or pitting indicates structural damage. Once the bar's integrity is compromised, it cannot be trusted to guide the chain safely.
Expected Bar Lifespan
A quality bar typically lasts 5-10 years with regular use and proper maintenance. However, lifespan varies significantly based on:
- Cutting frequency: Professional arborists may replace bars annually, while homeowners may keep the same bar for a decade
- Material type: Solid bars last longer than sprocket-nose designs, though sprocket noses reduce wear on the bar itself
- Maintenance practices: Bars that are regularly cleaned, oiled, and correctly tensioned last far longer
- Cutting conditions: Cutting dirty, sandy, or abrasive wood (or hitting dirt) dramatically shortens bar life
- Chain maintenance: A dull or incorrectly tensioned chain wears the bar faster than a sharp, well-maintained chain
Essential Bar Maintenance Practices
Daily & Weekly Maintenance
Check bar oil levels before each use. Bar oil (also called chain oil) is essential—it reduces friction between the chain and groove, prevents overheating, and removes debris. Low oil levels cause rapid groove wear, overheating, and chain slippage. Most saws have an oil level window on the side of the fuel tank. Refill whenever it drops below the minimum line.
Inspect for debris and clean the groove. Sawdust, dirt, and wood chips accumulate in the groove during cutting. Blow out the groove with compressed air or use a soft brush to clear debris. Trapped particles accelerate wear and interfere with chain fit.
Check chain tension and adjust if needed. A chain that's too loose falls off the bar; one that's too tight accelerates groove wear and creates excessive friction. Tension should be checked daily and adjusted as the chain stretches or as the bar's groove changes. See how to tension your chainsaw.
Rotate the bar front-to-back. Every few weeks, loosen the mounting bolts and rotate the bar 180 degrees. This distributes wear evenly across the groove and extends bar life significantly—a critical maintenance step many operators overlook. Running a bar always in the same orientation causes uneven groove wear.
Monthly & Seasonal Maintenance
Deep clean the groove and nose tip. Use a soft-bristled brush and a groove-cleaning tool (available from your equipment supplier) to scrub the entire groove. Remove any packed sawdust or buildup. A clean groove ensures proper chain contact and reduces friction.
Inspect the mounting surface and bolts. Ensure mounting bolts are tight (but not over-torqued) and the bar's mounting surface sits flush against the engine case. Loose bars vibrate excessively and wear faster.
Check bar straightness. Lay the bar on a flat surface and sight along its length. Any visible warp is a sign of stress—investigate the cause (typically improper cutting technique or a recent impact) and plan replacement if the bend is significant.
Replace bar oil with each season. Old bar oil becomes viscous and less effective. Fresh oil provides better lubrication, reduces wear, and prevents buildup in the groove.
Long-Term Care
Store bars properly during off-season. Drain bar oil during long storage periods to prevent gum buildup. Store bars in a cool, dry place to prevent rust. If a bar has been stored for months, inspect it for corrosion before use.
Address chain issues promptly. A dull chain or one with damaged teeth puts excessive stress on the bar.
See our chainsaw sharpening guide. Keep your chain sharp - your bar will thank you.
Choosing the Right Replacement Bar
When replacement time arrives, selecting the correct bar is critical. An incorrect bar causes poor performance and may not fit your saw safely.
Key Specifications to Match
Bar length (measured nose-to-mounting point) must match your saw's capability. A bar that's too long strains the engine, causes erratic cutting, and reduces power. Your saw's manual specifies the recommended bar length range. Never exceed the maximum length recommended by the manufacturer. Common residential bar lengths range from 14" to 20", while professional arborists often use 16" to 25" bars.
Pitch and gauge must match your chainsaw exactly. Pitch (spacing between chain links) and gauge (thickness of the chain drive links) are matched sets—a .325" pitch chain requires a .325" bar groove. Mismatches cause chain derailment. Check your chainsaw's manual or existing bar for these specifications. [Link: "Chainsaw Bar Sizing Guide" → Chainsaw Bar Sizing Guide]
Mount type varies by manufacturer. Most modern saws use a standard side-mount design, but some brands use proprietarily-designed mounts. Verify compatibility before purchasing.
Bar Materials & Types
Solid steel bars are durable, affordable, and suitable for most users. They last longer than sprocket-nose designs but are slightly heavier.
Sprocket-nose bars feature a small bearing at the tip that reduces friction and bar wear. They're ideal for professionals who log long hours. The replaceable nose tip extends overall bar life, though the bars are more expensive.
Lightweight bars reduce operator fatigue on all-day jobs. They sacrifice some durability for weight savings.
Milling bars have a narrower, more rigid design optimized for Alaskan Mill setups. See our Alaskan Milling Guide.
Installation & First-Run Checks
Mounting Your New Bar
- Disconnect the spark plug for safety
- Remove the spark plug wire
- Loosen and remove the mounting bolts (usually 2-4 bolts)
- Slide the old bar off the engine case
- Clean the mounting surface with a dry cloth to remove oil and sawdust
- Align the new bar's mounting holes with the engine case holes
- Insert mounting bolts and tighten evenly in a cross pattern (not in sequence) to ensure the bar sits flush
- Do not over-tighten—this can warp the bar or crack the engine case
Critical First-Run Checks
Before cutting, perform these checks:
- Chain tension. The chain should pull slightly away from the bar midway along its length but snap back when released.
- Oil flow. Run the saw briefly over a white piece of cardboard. You should see a visible oil line on the cardboard, indicating proper bar oil flow.
- Chain spin. Manually spin the chain by hand—it should move smoothly without binding.
- Bar alignment. Cut a straight line vertically into a log. The cut should be straight, not veering to either side.
If the chain pulls to one side despite proper tension, the bar may be bent—do not use it. Return it for replacement or verify mounting.
Cost Analysis: When to Replace vs. Repair
A quality replacement bar typically costs £30–£120 depending on length and type. Labour for installation is usually included if you have a dealer install it. In comparison:
- Professional bar straightening (if possible) costs £40–£80 but offers no guarantee
- Continued use of a worn bar requires frequent chain replacement and causes poor cut quality
- Damage from operating a faulty bar (including injury risk) far outweighs replacement cost
Most worn or damaged bars should be replaced, not repaired. A new bar is a one-time investment that improves every cut you make.
Maintaining Your Chain to Protect Your Bar
Your bar's lifespan is directly linked to chain condition. A sharp, properly tensioned, well-maintained chain puts minimal stress on the bar groove. See chainsaw chain sharpening.
Key practices:
- Sharpen your chain every 4–8 hours of use (sooner if you hit dirt)
- Keep the chain tensioned correctly—never too loose or too tight
- Inspect for damaged or broken links and replace the chain if found
- Always use quality bar oil designed for chainsaws (never use engine oil)
A sharp chain keeps your bar happy. A dull chain is your bar's worst enemy.
Conclusion: Extend Your Bar's Life
Chainsaw bar maintenance is one of the most under-appreciated aspects of chainsaw ownership. Yet a few simple habits—keeping the groove clean, rotating the bar regularly, maintaining proper chain tension, and using quality bar oil—can extend your bar's life by years and save hundreds in premature replacements.
When replacement finally does become necessary, selecting the correct bar and maintaining it properly ensures that your new bar delivers reliable, accurate cuts for many years to come.
